From head to toe focused on image processing
he embedded box PC TANK-870-Q170 from ICP Deutschland is especially made for the usage in image processing applications. It combines an optional POE expansion, RAID function and different PCI, PCIe and PCIe MIni Card expansion possibilities.

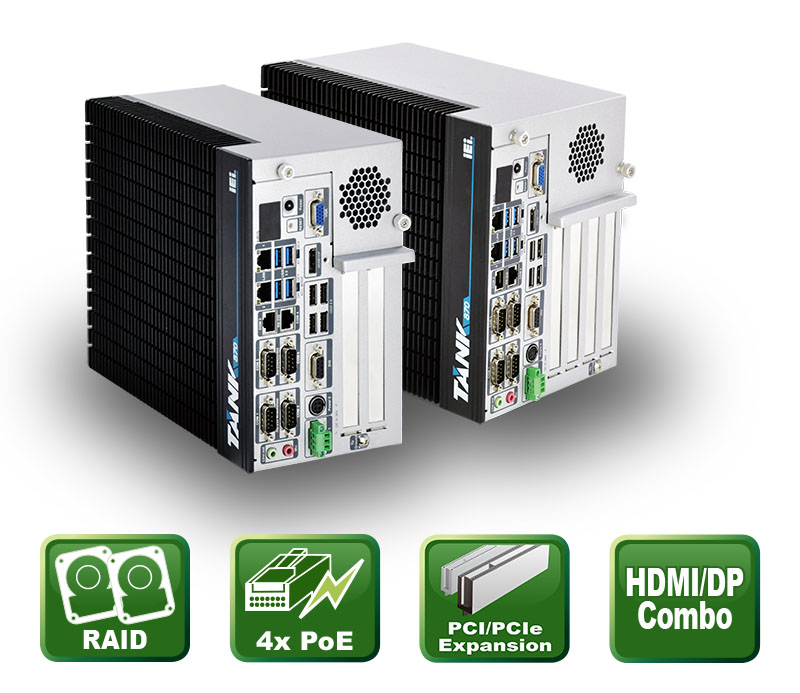

TANK-870-Q170 – Embedded Box PC with PoE Expansion(firmenpresse) - The embedded box PC TANK-870-Q170 from ICP Deutschland is literally, from head to toe, focused on image processing. This is supported by a compact design, a high transfer rate and a redundancy for securing sensitive data by the RAID function of the two 2.5” SATA 6Gb/s ports. An extended power input 9VDC~36VDC and temperature range from -20°C to +45°C/60°C as well as a vibration protection according to MIL-STD-810G enable a direct placement of the TANK-870-Q170 at the machine itself. There is also the option to connect up to four IP cameras with max. 15.4W each port via the PoE Ethernet expansion card IPCIE-4PoE. Its computing power is obtained from an Intel® Skylake CoreTM i7 or i5 processor and two DDR4 SO-DIMM memory (max.64GB). The lead out I/O interfaces at the front includes four USB 3.0 / 2.0, four RS-232 (2.5KV isolation protection), two RS-232/422/485 and GbE LAN each as well as one 8-bit digital I/O. The connection of three independent displays is enabled via one HDMI+DP combo port (4K UHD), one VGA and one optional DP (display port). In addition, the TANK-870-Q170 offers its users maximum expansion flexibility in terms of four backplane variants from 2 slot to 4 slot for PCIe x8, PCIe x16, PCI and half-size/Full-size PCIe Mini Card. As Ready-to-Use system the embedded box PC is optimized for industrial image processing due to compatible components and immediate readiness.
ICP. Industrial Computer Products …by people who care!
